Komaway (Vent Filter)
- Breathable and supports internal pressure adjustments.
- Porous membrane for intrusion prevention of water, dust, and oil from the outside.
- Waterproof and moisture permeable for condensation prevention in the enclosure.
- Water repellent and initial oiliness (film surface).
- High durability through P.E.T. mesh reinforcement.
■ Application examples
- LED lighting
- Outdoor security cameras
- Controller parts of electric bicycles, etc.
- Outdoor installation switchboards
- As internal pressure control membrane
- Outdoor use, as condensation prevention filters
- Vehicle pressure control membrane
- High-rise elevator pressure control membrane
■ Specifications
| Part number | Permeability (Gurley method) | Water pressure resistance (mm) | Waterproof | Other |
|---|---|---|---|---|
| TX1303M270 | 12 seconds | 7,500 | PX7, 8 equivalent | RoHS and REACH compliant products |
※ This is a measured value and not a guaranteed value.
※ Waterproof refers to water resistance in the enclosure.
※ Water resistance is measured by JIS L 1092 Water Resistance Test B method (high water pressure method).
※ Air permeability is measured by JIS L 1092 B method (Gurley method).
※ Waterproof refers to water resistance in the enclosure.
※ Water resistance is measured by JIS L 1092 Water Resistance Test B method (high water pressure method).
※ Air permeability is measured by JIS L 1092 B method (Gurley method).

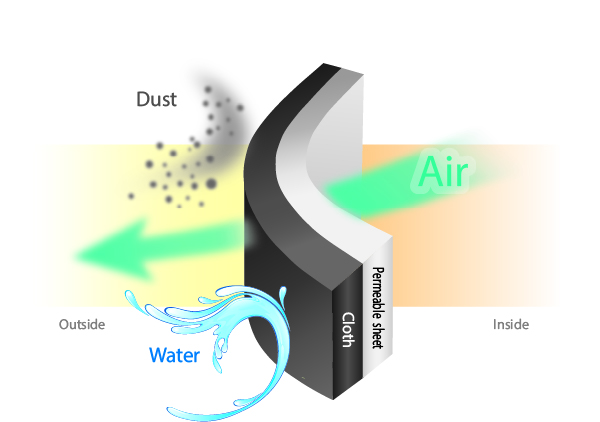

■ Configuration Diagram
■ Section
