Komaway (Sound Transmission / Waterproof Membrane)

Komaway (Sound Transmission / Waterproof Membrane)

Komaway (Sound Transmission / Waterproof Membrane)

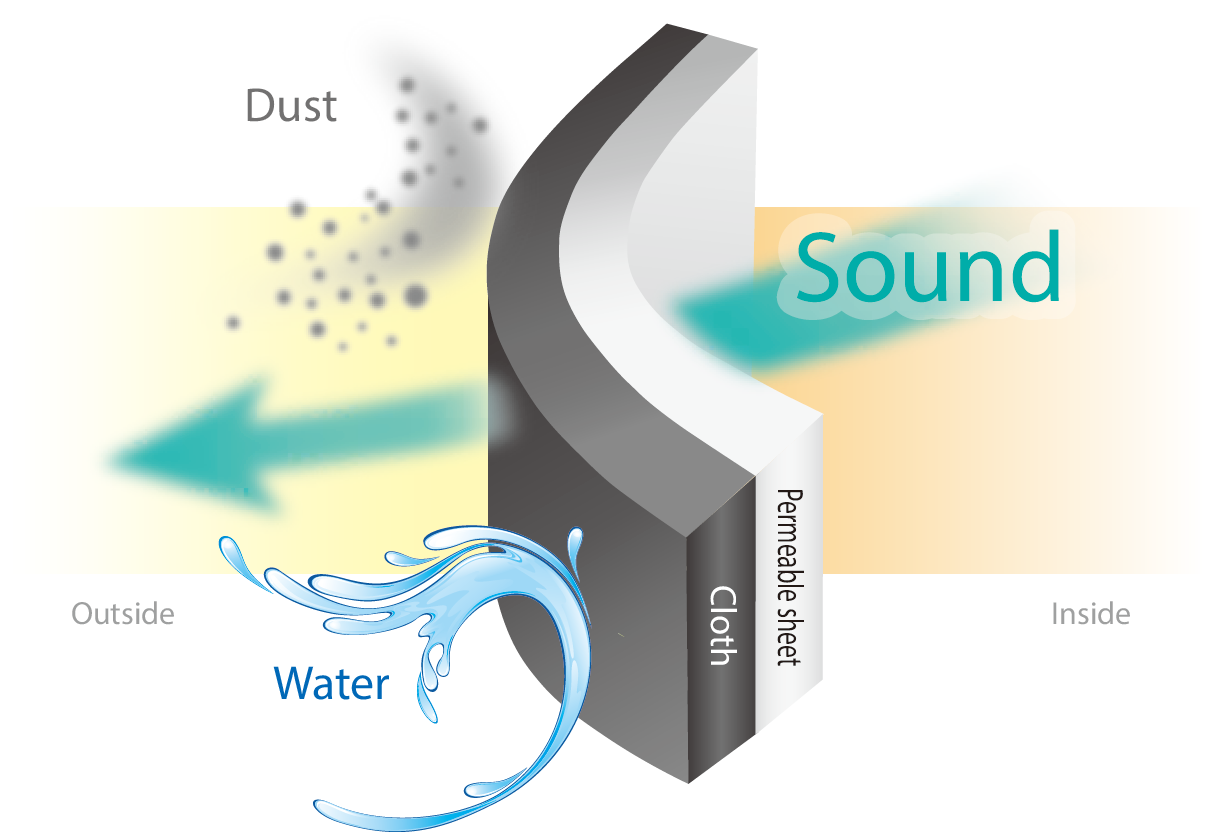

  • Air and water permeable, suitable for microphones and speakers that need to be waterproof and transmit sound.
  • Prevents water and dust intrusion from the outside.
  • High durability through P.E.T. mesh reinforcement.

■ Application examples

Application examples

  • Smartphone
  • Tablet
  • Mobile PC
  • Digital camera
  • Outdoor speaker
  • Other electronic devices for outdoor us

■ Specifications

Part number Air Permeability (Gurley method) Water pressure resistance (mm) Waterproof Other
TX1303M270 2
seconds
7,500 IPX7,8
equivalent
RoHS and
REACH
compliant
products
※ his is a measured value and not a guaranteed value.
※ Waterproof refers to water resistance in the enclosure.
※ Water resistance is measured by JIS L 1092 Water Resistance Test B method (high water pressure method).
※ Air permeability is measured by JIS L 1092 B method (Gurley method).

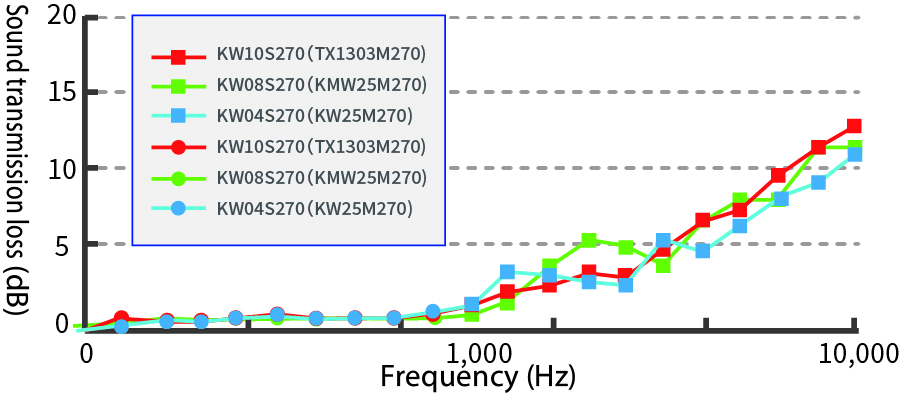

■ Acoustic Characteristics (Sound Transmission Loss)

Acoustic Characteristics (Sound Transmission Loss)

※ Sound insulation was evaluated by sound transmission loss (Acoustic Tube Method ASTM E2611-09).
※ The lower the value of sound transmission loss, the better the sound transmission.

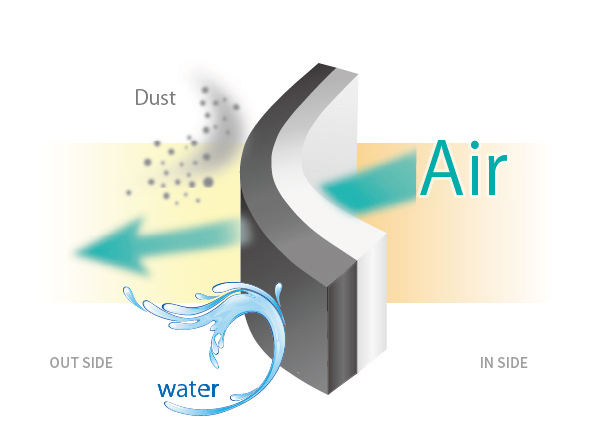

■ Configuration Diagram

Configuration Diagram

■ Section

Section
